Flat Die Pellet Mill: A 2026 Buyer & Operator Guide

A flat die pellet mill is the workhorse most operators reach for when they need to turn sawdust, straw, animal feed, or other biomass into uniform pellets at small-scale to mid-scale production. It is the design that started the modern pellet industry, and despite ring die mills taking over industrial plants, the flat die format keeps its advantage in workshops, farms, and pilot lines, anywhere production runs sit between 50 kg/h and 1,000 kg/h. This guide walks through the working principle, how the flat die compares to the ring die, how to spec the die geometry and power source, which materials work (and which need pre-treatment), realistic price tiers, maintenance routines tied to ISO 17831-1 pellet durability, and what is changing in 2026 with EU RED III compliance and torrefied pellets arriving at industrial scale.

What Is a Flat Die Pellet Mill?

A flat die pellet millis a pellet machine with a horizontally positioned round, flat die that rollers push processed biomass through the die plate holes. The flat dies have a number of holes for processing the fuel; two configurations is mechanically used to convert biomass to pellets, such that either the die or rollers revolve around one another. The friction of material passing through the die hole is enough to develop heat (70-90 C within the pellet mill chamber), causing the lignin to melt and soften and produce a uniform output. A blade then cut the continuous strand to the length desired.

That’s the core principle of it. No steam injection, no double-stage compression, no recycle of hot feed – the simplicity is why the flat-die form is so amenable for micro production sizes. contrast that with a ring-die mill where a cylindrical die go vertical and rolls ride inside and material is feed out centrifugally, which has throughput at the cost of increased capital and maintenance needs.

Three variants dominate the market today:

• ✔
  Electric flat die pellet millworkshops, indoor production lines, anywhere with stable 3-phase power. Easiest to operate and quietest.
• ✔
  Diesel flat die pellet millrural sites and off-grid operations. Self-contained but requires fuel logistics and e×haust handling.
• ✔
  PTO flat die pellet millfarm-mounted units that draw power from a tractor’s PTO shaft. No separate fuel or grid bill when the tractor is already running.

A small slice of the market still sell gasoline-driven flat die mills for very small projects, but they’re rare in B2B procurement and we treat them as a sub-case under diesel in the comparisons below. Industry data and machinist forum threads both note that ring die mills displaced flat die from large industrial pellet plants several decades ago, yet the flat die format never went away because it’s the only sensible choice for production runs below roughly 1 ton per hour. For TCPEL’s flat die pellet mill lineup with full electric, diesel, and PTO drives, see our flat die pellet mill product line.

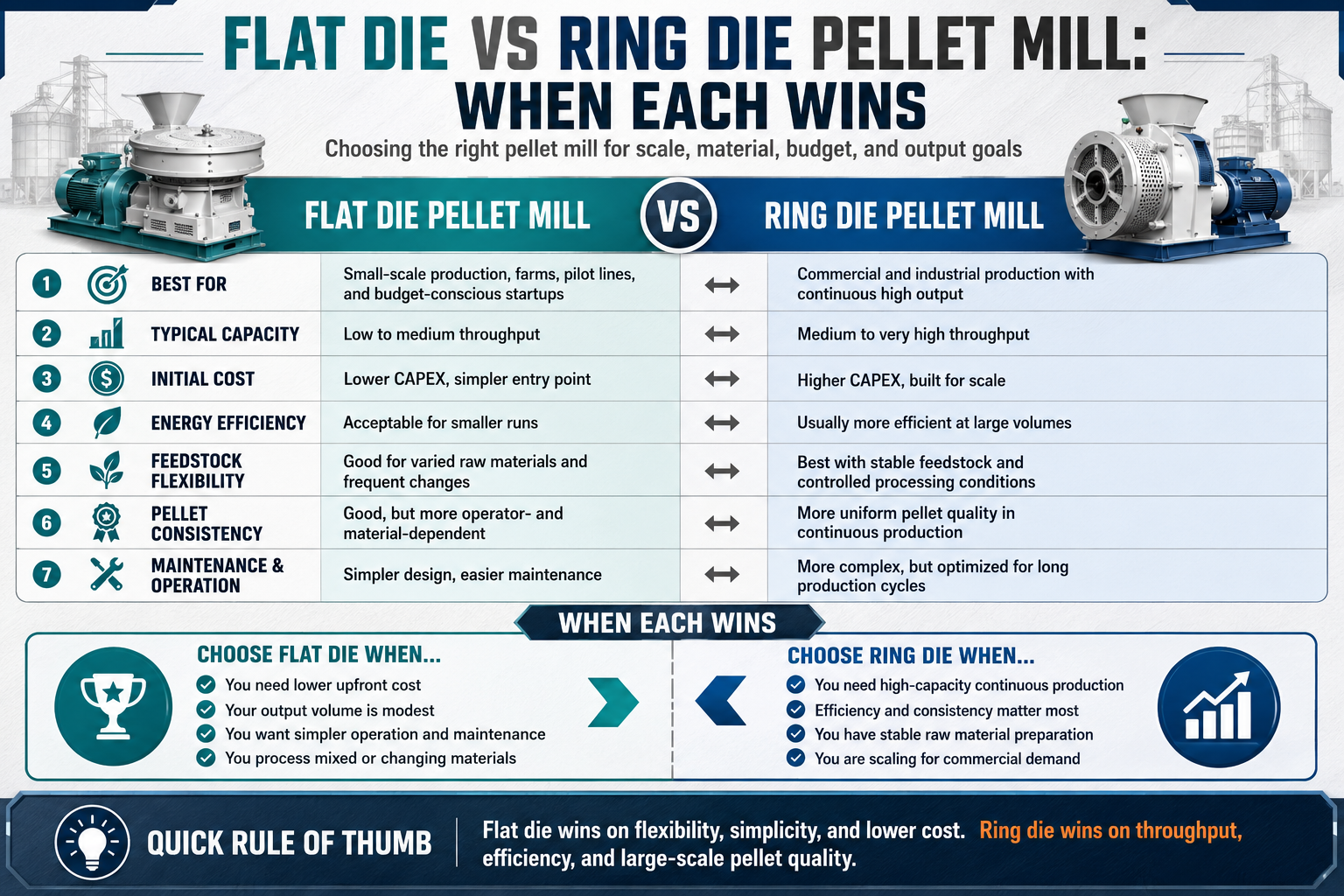

Flat Die vs Ring Die Pellet Mill: When Each Wins

The flat die versus ring die question is the first real fork in the road for any buyer. Short answer: flat die wins below 1 ton per hour, ring die wins above. A more useful answer requires looking at four dimensions where the two machines diverge, capital cost, energy efficiency, die wear, and how they handle different materials.

What’s the difference between flat die and ring die pellet mills?

Both compress ground biomass through die holes via mechanical rolling force. The distinctions are one of geometry. In a flat die mill, a circular die lays flat and is mounted like a records on a turntable; rollers e×ert pressure downward through holes within the die.

In a ring die mill, by contrast, the die is a vertical cylinder and rollers rotate inside that cylinder; centrifugal feed distribution plus rotation pushes material outward through radial die holes. Self-feeding through radial holes gives ring die mills roughly three to four times higher output per unit motor power than a comparable flat die, at the cost of higher capital outlay, more complex maintenance, and a steeper learning curve when changing materials. Both formats are graded under the same ISO 17225-2:2021 wood pellet specification, so the choice is purely about throughput economics, not output quality.

Among industry suppliers, ring die mills generally span 300 to 4,000 kg/h capacity ranges, while flat dies cluster between 40 and 1,100 kg/h.

Die Geometry: Hole Diameter, Compression Ratio & Service Life

The Pellet Press Dies – the HEART of your pellet machine 2 number determine how good your pellet looks and whether your die will last long: Hole diameter ANDCompressionRatio. Choose the wrong pair for the material, and you’ll either generate only dust and crumble (not enough pressure on you material) or you’ll melt your hole closed and your motor will lock up. This applies to small, portable pellet dies and large industrial pellet mill dies alike – only the magnitude change.

Hole diameter sets the pellet diameter. Φ6 mm and Φ8 mm are the workhorses for wood pellets used in residential stoves; Φ4 mm dominates animal feed where chickens and small livestock need smaller pellets; Φ10–12 mm fits some industrial fuel applications and organic fertilizer. Industry practice is to spec a die with a single hole diameter and replace the die plate when you change pellet size.

Service life depends on material abrasiveness and how well you control moisture. A 20CrMnTi alloy steel die handling clean softwood at correct moisture commonly lasts 800–1,500 production hours before the holes oval out and pellet quality drops; the same die running rice husk or straw with silica content can fail in under 400 hours. USPTO patent US20080290548A1 describes a flat die geometry with an internal-diameter-to-compression-hole-length ratio of at least 16:1 for high-throughput applications, a useful reference when comparing die designs across suppliers.

4 Power Sources Compared: The 4-Drive Selection Score-Card

Pellet mills fitted with flat dies are equipped with four power options: electric motor, diesel, tractor PTO, and gas. While it may appear to be an apples-to-apples comparison, this isn’t about feature selection – it’s about electrical infrastructure. What’s already installed on the farm, and how does the additional cost of installation compare to the cost of moving the mill?

For a closer look at TCPEL’s electric and diesel flat die pellet mill range, including motor options and PTO-ready frames, contact our engineering team.

Materials You Can (and Can’t) Pelletize

The single biggest mistake made by first-time users isn’t recognizing that a flat die pellet mill can’t be fed any biomass that will fit in the feed chute. It simply isn’t designed to handle the wide range of feedstock characteristics seen in other systems. Moisture levels, lignin content, and particle size all have a narrow operational range – and at small-to-moderate scales a flat die offer less tolerance for variation than a steam-conditioned ring die plant.

Can a flat die pellet mill produce both hardwood and softwood pellets?

Yes, with two adjustments. First, the die compression ratio differs (1:4 to 1:5 for hardwood, 1:6 to 1:7 for softwood, see the die geometry table above). Second, hardwood often benefits from a slightly lower input moisture target around 10–12%, because the denser fiber holds less water before extrusion temperature rises beyond the lignin softening window. Many small operators run a fixed Φ6 mm 1:5 die and accept slightly looser softwood pellets rather than maintain two dies. That’s a reasonable trade if pellet durability index (PDI) for your application allows it.

Materials we generally don’t recommend on a flat die: green sawdust (over 30% moisture, needs drying first); whole wood chips (require a hammer mill upstream); plastic-contaminated waste (melts onto the die and damages roller bearings); wet manure (needs partial drying before pelletizing). For a fuller compatibility chart matched to specific TCPEL flat die models, see our material compatibility list on TCPEL’s flat die mill page.

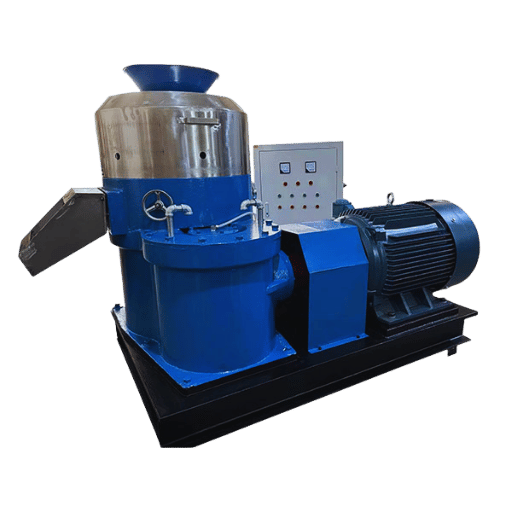

Sizing Throughput: 50/200/500 Throughput Tiers

Flat die pellet mills fall into 3 useful capacity groupings. In each case, suppliers may have different model designations, but, the engineering and latter buyer decision questions are strikingly the same. Let’s call them the 50/200/500 Throughput Tiers:

Tier 1 is the most common entry point. Tier 3 is where buyers often debate whether to step up to a ring die. The honest answer: if you’re running one material consistently more than 6 hours per day, the ring die’s lower energy per ton recovers its capital premium in roughly 18–30 months at typical industrial electricity prices. If material switching is frequent or runs are intermittent, stay flat die. See TCPEL’s 200–400 kg/h tier specs if you’re sizing a small commercial setup.

DIY Pellet Mill: When Plans Make Sense (and When They Don’t)

Free DIY pellet mill plans circulate on agricultural forums and hobby sites. They appeal to the same instinct that drives anyone to build their own welding cart or band saw stand, cost, control, and the satisfaction of using a machine you understand. For pellet mills, our honest assessment is mixed.

Industry practitioners and forum machinists alike report that the appeal of DIY pellet mills fades once a builder realizes the die plate alone represents 40–60% of a factory mill’s cost, and the die is precisely the part that’s hardest to make at home. Academic research published in BioResources (North Carolina State University) shows that even with calibrated lab-scale flat-die machines, pellet quality depends heavily on machine tolerances and operator control, exactly the variables a workshop build struggles to hold consistently. A factory-built 100 kg/h electric flat die mill at $2,000–$3,500 imported is genuinely difficult to beat for any output above hobby scale.

How to Make Pellets: 5-Step Process

Whether you’re pelletizing pine sawdust for a wood stove, alfalfa for goats, or rice husks for boiler fuel, the process flow is the same five steps. Skip or short-cut any of them and pellet quality drops.

How do I prepare agricultural waste into fuel pellets?

Five steps apply. Agricultural waste, corn stover, wheat straw, rice husk, sugarcane bagasse, needs slightly more attention at steps 1 and 2 (drying and grinding) because field-collected material arrives with variable moisture and large fiber length. A binder additive at step 3 (often corn starch at 1–3%) improves durability for low-lignin biomass; the U.S. National Library of Medicine 2016 study demonstrated that this approach can simultaneously raise pellet durability and lower motor energy.

1. Dry. Raw biomass coming from a forest, mill, or field is usually 25-55% moisture. Use a rotary dryer or solar drying yard to bring it to 12-18% before grinding. Drying after grinding wastes energy because the smaller particles dry faster than the dryer can offload heat.
2. Grind. Use a hammer mill to reduce particle size to under 5 mm for wood, under 4 mm for hardwood, and under 6 mm fiber length for straw. Larger particles bridge inside die holes and cause jamming; finer particles waste hammer-mill energy and over-heat downstream.
3. Condition. Adjust moisture to the 10-15% sweet spot (15-18% for low-lignin agricultural residue). If material is too dry, mist with a fine water spray and let equilibrate for 20-30 minutes. If too wet, mix in dry material or air-condition. Add binder if needed (1-3% molasses or starch for straw, hay, manure).
4. Pelletize. Feed at a steady rate that keeps the motor at 70–85% of rated load. Listen to the motor sound, a rising whine signals impending jam, a labored low growl signals overfeed. Die temperature reaches 70–95°C in steady state; the first 10 minutes of a cold start produce loose pellets while the die warms up.
5. Cool & screen. Fresh pellets leave the die at 80–95°C and 13–17% moisture; they’re soft enough to crumble by hand. Cool to ambient with a counter-flow pellet cooler over 8–15 minutes, then screen out fines (typically 1–4% of throughput). Final pellets should be 10–12% moisture, hard, and durable.

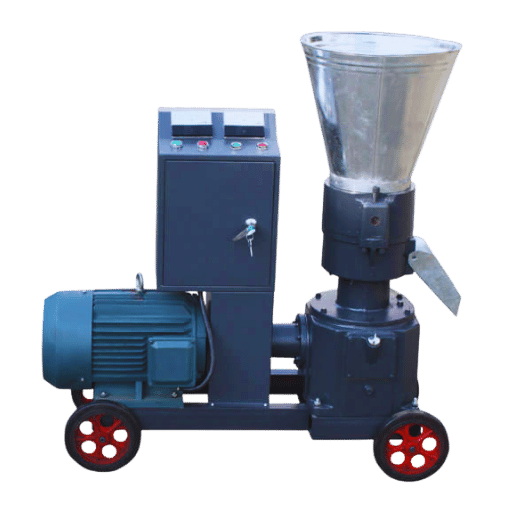

Buying a Flat Die Pellet Mill: Price Tiers & Supplier Vetting

Flat die pellet mill pricing isn’t transparent because it depends on the choice of brand for the motor, die alloy, frame quality, freight terms and post-sales service. As a benchmark guide line only for ex-factory China price level, May 2026 (the origin for all small to middle sized imported mills): The above 3 levels broadly corresponds to

Prices are indicative supplier ranges as of May 2026 and may not reflect current market, request a written quote dated within the last 30 days before placing an order. Freight, import duty, and installation are excluded.

If you want to compare TCPEL’s flat die pellet mill specifications against this checklist, our product page lists motor options, die diameters, MTC availability, and after-sales support coverage for the export markets we serve.

Maintenance, Die Wear & Pellet Durability Index (PDI)

An objective pellet quality indicator is the Pellet Durability Index (PDI), and commercial purchasers in Europe, North America, and, growing in Asia, all ask for it specifically. The procedure for the PDI is defined in a range of official standards, the most recent in Europe being ISO 17831-1:2015, and the test itself uses a standard device such as the Holmen NHP100 portable tester where a measured sample is blown by air at 70 mBar for one minute and the amount of unbroken pellets left is calculated.

Premium ENplus A1 wood pellets must achieve at least 98% PDI per ISO 17831-1. In practice, a well-conditioned flat die mill on clean softwood at correct moisture will hit 96–98% PDI. Below 90% indicates die wear, moisture out of window, or particle size too coarse.

Reviewed by TCPEL engineering team, May 2026

Three certification schemes dominate the wood pellet market, and they are NOT interchangeable. ENplus (administered by the European Pellet Council) leads EU heating and now covers traders and emissions tracking down the entire supply chain; PFI (Pellet Fuels Institute) is the U.S. residential standard with Premium / Standard / Utility grades; DINplus is the German variant of ENplus. All three benchmark against ISO 17225-2:2021, the international wood pellet specification, which raised the Class A1 abrasion bar to 98%, dropped Class A2 ash content from 1.5% to 1.2%, and added ash melting behavior as a normative parameter. If you sell across multiple regions, plan to qualify against more than one.

Forum machinists and industry operators are nearly universally reporting the two leading cause of poor formation and jamming is having excess moisture (over 18%) or to much low moisture (under 10%) long before physical wear can have significant impact.

2026 Industry Outlook: Where the Biomass Pellet Machinery Market Is Heading

Here are two things happening in 2026 that will change your buying time lines if you purchase or replace a flat die pellet mill.

First, regulation. EU Renewable Energy Directive III (RED III) reaches its mandatory compliance date on 1 January 2026. Biomass installations selling into EU markets must meet strengthened sustainability and greenhouse-gas-saving criteria by then; certification schemes approved by the European Commission are the practical path. A grandfathering clause keeps older installations under RED II rules through 31 December 2030, but new entrants and any non-grandfathered facility must qualify immediately. If you supply pellets to Europe, the certification work need to begin now, not after the deadline.

Second, technology. Torrefied wood pellets, biomass heated to 250–300°C in an inert atmosphere before pelletizing, are crossing from research to industrial scale. India’s NTPC opened the country’s first large-scale torrefied pellet facility at Talwandi Sabo in April 2025, with national mandates targeting 50 million tonnes annually. Globally, torrefied pellets represented an estimated 15% of premium segment volume in 2025, and the integrated torrefaction-densification process is targeting drop-in coal replacement for power generation. USDA Foreign Agricultural Service data indicates EU pellet consumption is forecast to recover in 2025 after declines in 2023–2024, driven by residential and industrial demand returning together.

If specifically buying flat die equipment, then modern lines mostly conventional pelletize but suppliers into export markets are increasingly including an integral torrefaction stage when new line orders are placed. Patent activity in the die geometry aspect of pelletizing itself has plateaued in the last 2 to 3 years or so, with most R&D activity moving to the upfront torrefaction process, and the backend process control side.
