Direct-coupled 3,000 RPM engine, twin-side discharge, capacity from 100kg/h to 6,000kg/h. Designed for biomass pellet manufacturers, wood processors, and animal feed plants exporting to over 60 countries worldwide.
Get Quote (Free Engineering Consult)
Capacity tier framework, four sizes
FOB Qingdao, USD published
EU machinery directive ready
24-h engineer + 5-day spares
An industrial hammer mill is stage one in the chain for every biomass pellet, wood briquette, and animal feed process – yet four common failures keep customers awake. All are a consequence of sourcing behaviour, not matter-of-fact physics. We engineered our TCPEL design to eliminate all four from the transactions table.
Pricing is not transparent: every ask requires a one-time 2 week negotiation before a buyer has an end-cost numaric.
Published four level USD FOB price list for our entire hammer mill range, 900 USD-Powered.
Standards are unmanaged: many of our competitors technical data sheets include the ambiguous provision “industrial standard” without any baseline for CE, ISO, or EN.
CE 2006/42/EC + ISO 9001:2015 + ISO 12100 + EN 60204-1 specified.
Spares take 3 weeks to arrive, not 3 days when the screen bits blow out.
International courier: a 4-day maximum for consumables; 24 hours response from CNC dealer equipped engineer
Sizing is worked out directly with sales, instead of by a helpful thumb rule.
Capacity sizing calculator + 4 tier framework whatever the application allows a buyer to self assess in under five minutes.
Threes forces degrade material as it passes through a hammer mill: impact from hammers whacking away at incoming feedstock, shear as particles rub against the breaker plate, collision as broken material bounces back off the side chamber into itself. Speed ranges from 1,500 and 3,600 RPM depending on particle size standard (Prater Industries). A perforated screen keeps anything too large the slit until further size reduction allows it to go through.

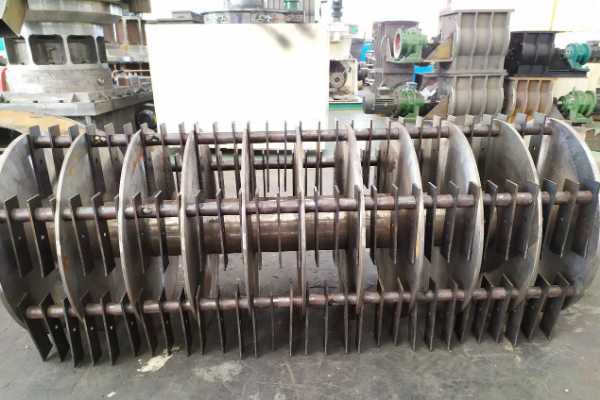

Motor shaft couples directly to the rotor – no drive belt, no pulleys, no slipping. Removes the 2-4% transmission loss which is common with belt driven hammer mills, and also removes the most common ‘unforseen’ downtime in your frugal machines.
Material is discharged from both sides of the grinding chamber at once, effectively doubling the dischargel area. For our 1,500kg/h Industrial-tier unit this yields roughly 1.7 times the throughput a single-discharge system would achieve at the same screen size and rotor speed:

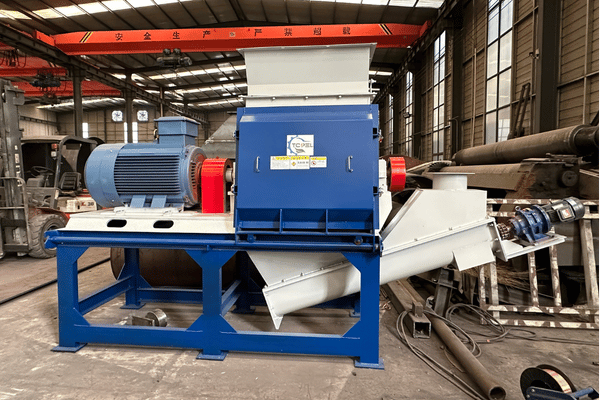

The grinding chamber and discharge housing are be welded together as one block. Since there are no bolted connections inside the chamber, there are no places where the dust from the biomass begins to settle, which can cause a gradual clogging in time (costing older machines 10-15% of their first year throughput).
Pneumatic discharge port is provided as standard on all Industrial and Heavy Industrial levels, it is directly connected to a TCPEL or third party cyclone separator and bag dust collector in biomass handling operations in accordance with EU dust-explosion safety limits under ATEX conditions.
Hammermill catalogue organizes into four power/capacity tiers designed to complement one of four TCPEL pellet mill lines. The tier system provides customers a self-qualify criteria based on desired throughput, avoiding discussion tolling capacity and sales interview. Power, USD price bracket, and pellet-line partner below:
| Tier | Capacity | Motor Power | FOB Qingdao USD | Pairs With |
|---|---|---|---|---|
| Entry | 100–300 kg/h | 7.5–15 kW | $900–$1,800 | Small farm or pilot line, hobby pellet production |
| Small Commercial | 300–1,000 kg/h | 15–37 kW | $1,800–$3,500 | TCZL250–450 wood pellet line companion |
| Industrial | 1,000–3,000 kg/h | 37–90 kW | $3,500–$8,500 | TCZL550–650 wood pellet line + TCF feed pellet line |
| Heavy Industrial | 3,000–6,000 kg/h | 90–160 kW | $8,500–$15,000 | TCZL850 series, plant-scale biofuel production |
Capacity target (kg/h) is the single most important number. For 2 t/h pellet line, it should be 55-75 kW for hammer mill (shandong changsheng pellet line case study).
First, is the feedstock—material density is critical: Soft biomass such as sawdust or straw will require 30-40% less power than dense feed grain. Hardwoods use 25-30% more power than soft-wood at the same throughput.
Next: power feed source— Industrial and Heavy Industrial tiers require three phase 250-400 amp service. Single phase rural sites are limited to Entry tier (15 kW); check transformer size before specifying.
For a 1.5 t/h pellet mill in the TCZL550 range at the lower power range, producing wood pellets from sawdust, power is suitably matched at the Industrial tier (37-55 kW.) For a 3 t/h poultry mash mill in TCF600 range, power is stepped up to the Industrial tier at (75-90 kW) with a 1mm fine screen.
Cross-mapping a 100-6,000 Kg/h machine based off end point particle size and dust profile categories across three downstream applications, three different particle sizes, and third-party certification pathways – configuring the same base machine from different screen variables, rotor balance, optional cyclone sizing:

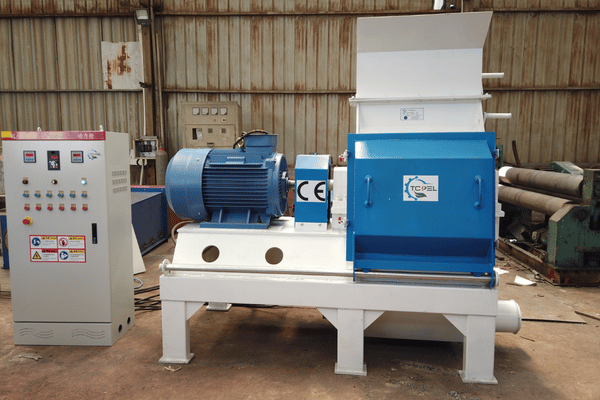

For biomass fuel pellet producers—sawdust, EFB, palm shell, agricultural waste, straw, olive pomace:
For wood pellet, briquette, and MDF producers—common-edge woods, pallet waste, planer shavings, large wood chips:

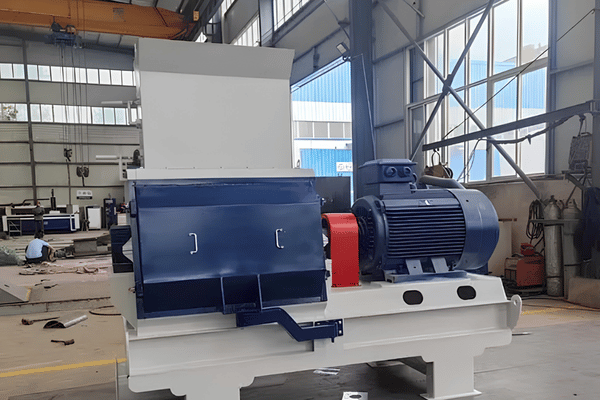

For animal feed producers—grains, beans, oilseed cakes, lucerne/alfalfa, straw-mash:
Five common endmaterials across our 60-country export supply map assemblage produce four straightforward particle size endbands. The matrix below recommends a TCPEL tier and particle size end-band specific entry point for each material by screen aperture and working power matched to industry-proven capacity-to-horsepower ratios:
Every TCPEL hammer mill ships with four international machinery, electrical, and management standards – European and Australian authorities look for compliance before installation and buy-in. Our standards are published on the product page such that the procurement audit can move straight to a document request.
EU Machinery Directive- declaration of conformity supplied with shipment
Quality Management System — Allwin International parent certification
Safety of Machinery- general principles for machinery design, rotating mass guarding
Electrical Equipment of Machines- torque motor safety
The standards are not simply aesthetic. The TCPEL factory in Jinan has 100+ workshop staff, ships to 60+ countries since 2020, and its standards are carried to its international markets however large or small they are in the project’s final delivery form. Germany, Kemima, South Korea, New Zealand, Pakistan, Turkey etc.
We publish our full hammer mill pricing in USD on this page for transparency, and copy the tier table below for purchasing decision use; same data shown in four order, with total freight, project supply/import cost added. Expect 3-6 weeks delivery.
| Tier | Capacity | USD FOB Qingdao | Typical Application |
|---|---|---|---|
| Entry | 100–300 kg/h | $900–$1,800 | Small farm pellet, hobby biomass, R&D pilot |
| Small Commercial | 300–1,000 kg/h | $1,800–$3,500 | Mid-scale biomass pellet, regional feed mill |
| Industrial | 1,000–3,000 kg/h | $3,500–$8,500 | Plant-scale biomass fuel, commercial feed mill |
| Heavy Industrial | 3,000–6,000 kg/h | $8,500–$15,000 | Power-plant biofuel, large industrial feed line |
Enter your target throughput and material type to get a recommended TCPEL tier, motor power range, USD price band, and matched product line — instant technical validation for industrial procurement.
A hammer mill is a type of industrial particle size reduction equipment that uses high-speed rotating hammers to ground raw material until particles are small enough to be transported through the perforated screen. TCPEL offers hammer mills for biomass pellet plants, wood processors, and animal feed mills, with four tier configuration and capacities from 100kg/h to 6,000kg/h.
Both impact and hammer mills applies impact force; however, their geometries differ. A hammer mill has lighter swinging hammers flying on a high speed rotor (1,500-3,600 RPM) with a perforated screen at the discharge — suitable for fine to medium particle sizes in feed, biomass, and food processing. An impact crusher has heavier rigid blow bars flying on a slower rotor (500-1,500 RPM) with no discharge screen — suitable for coarse aggregate crushing in mining and construction. There are also differences in product output grading; hammer mills produce uniform output through screen retention while impact crushers produce graded output through gravity discharge.
The four most common problems through out the industry are: (1) V-belt slippage (causes under-power and unscheduled downtime) – TCPEL disables this with direct-coupled motors; (2) screening clogging from high-moisture biomass – TCPEL installs dual-side discharge output port to maintain throughput; (3) hammer wear condition (causes rotor unbalance) – TCPEL builds it with hardened-alloy swinging hammers with proven 2-year service life in similar conditions; (4) dust explosion risk (during fine biomass processing) – TCPEL equips with pneumatic discharge ports with connect to ATEX-rated cyclone and bag filter systems.
There are three simultaneously acting forces inside the grinding chamber: impact (hammers hitting incoming material at 1,500-3,600 RPM), shear (dragging of particles on a hardened breaker plate), and collision (rebounding of fragments between chamber walls and each other). Material stay in the grinding chamber until they are small enough to be transported through the perforated screen at the discharge port. TCPEL hammer mills operate at 3,000 RPM without variable frequency drive; their high speed is suitable both for biomass coarse-grinding and feed fine-grinding applications.
Follow this rule of thumb using documented industry capacity-power data: softwood biomass at 1 t/h 30-37 kW (Small Commercial); at 2 t/h 55-75kW (lower Industrial); at 3t/h 75-110 kW (upper Industrial;). Hardwood requires 25-30% more power. At the same throughput animal feed grain utilizes 15-20% less power. The 6 Decision Matrix above maps these combinations against feedstock type and target particle size.

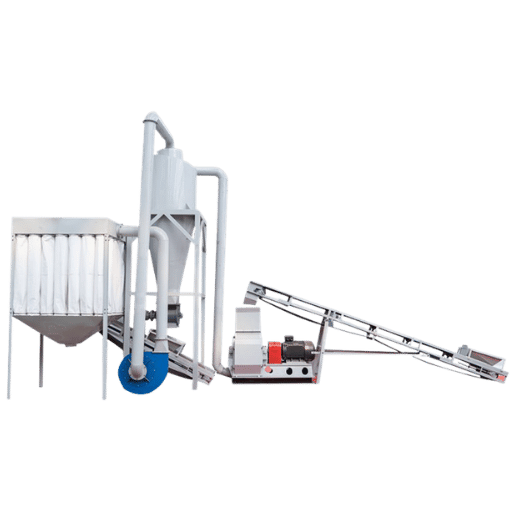

If hard wood is to be ground at 1 Tph target consider specifying 39-46 kW (Small Commercial); at 2 tph specify 65-90 kW (lower Industrial); at 3 Tph specify 110150 kW (upper Industrial;). Hardwood requires 25-30% more power. Then ask us to specify a complete grinding line – hammer mill plus cyclone plus bag filter – because this will be necessary when dust control is needed for biomass processing under ATEX dust explosion guidance in the European Union.
All TCPEL hammer mills include a 2-year parts and assembly warranty including rotors, casings, motor and bearing assemblies. Screens, hammers and break plates are classified as consumables and will arrive via DHL or FedEx with 4-5 days delivery into most regions worldwide. After-hours support available for troubleshooting by Whats App, email or voice call. Full commissioning services are available for all Industrial and Heavy Industrial tier installations worldwide. Cost is included in proposal once site requirements and logistics are established.
Yes! TCPEL hammer mills are operating in 50+ countries worldwide and we can provide recommendations, references, videos, sample engineer 3-D drawings, structural sections, working chamber closeups, and site installations, on request. Consultations on deployment in your region can be scheduled in any region based on our client expectations.
